Veteran's Memorial Bridge
Location:
|
Cleveland, Ohio |
|
| Products: |
Fibergrate molded grating 2" depth, 2" x 2" mesh pattern, FGI-AM Resin System, and
4' x 12' panels |
|
 |
 |
|
| Benefits: |
|
 |
Lightweight:
Lightweight material save end-user money because installation costs were lower than steel products. |
 |
Corrosion Resistant:
FRP will outlast steel |
|
Low Maintenance:
Little maintenance required - not repainting, minimal fading in sunny environment |
| Application Highlights: |
|

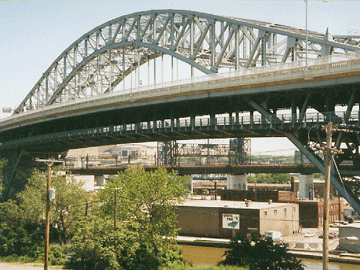

The Veteran’s Memorial Bridge spans the Cuyahoga River in Cleveland, Ohio. It was built in 1918 and at the time was the largest steel and concrete reinforced bridge in the world. The bridge links Detroit Avenue on Cleveland's west side and Superior Avenue on Cleveland's east side. It is recognized as one of Cleveland’s many historic sites.
Noting the bridges historical significance, the city
of Cleveland wanted to take great care in upgrading

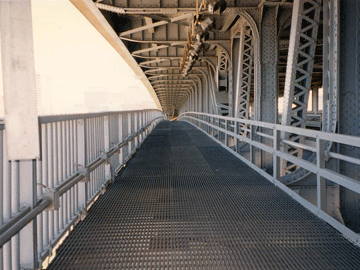

the bridge. Two steel maintenance walkways running the length of the north and south sides of the bridge, below the traffic deck, needed to be replaced. The walkways are used for inspection and maintenance of the bridge, and the steel was rusting from salt corrosion. Finding a lightweight grating product which would also span more than 4 feet was a challenge for the City of Cleveland when they decided to upgrade the Veteran's Memorial Bridge.
|
|
Approximately 12,000 square feet of 1-1/2" deep ISOFR Safe-T-Span® pultruded grating was fabricated for the 9'-10" wide x 591' long walkways. The grating panels were manufactured with 1-1/2" tie bar spacing and were 24'-7-1/2" overall in length. The clear span for the grating was
4'-1-1/2". Fibergrate is very proud to have been a part of this renovation project.
|
|
|
|
|
